USBExt3c¶

Overview¶

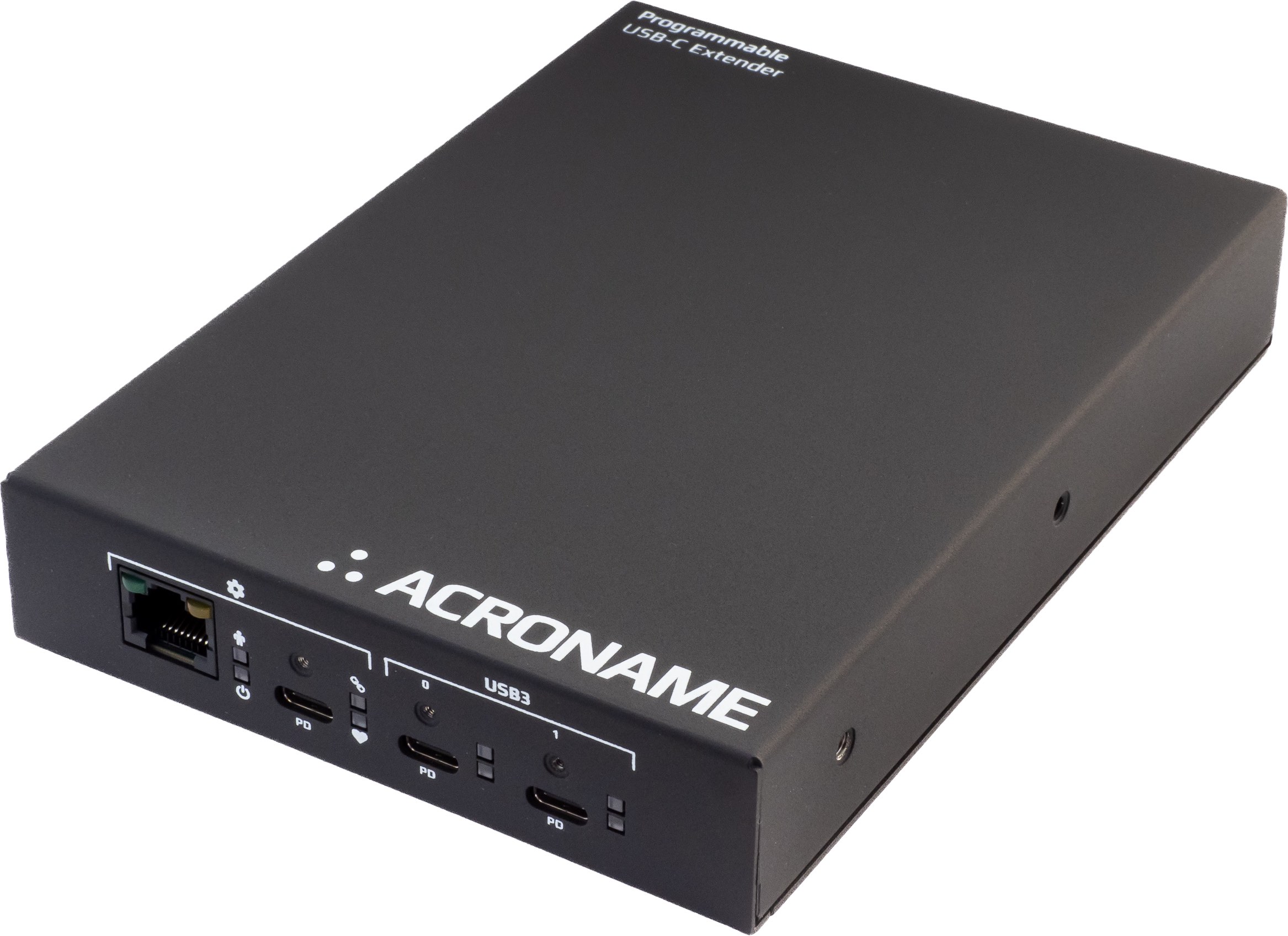

The USBExt3c is a managed two-port USB-C extender and programmable hub designed for enterprise, industrial, and AV environments. It supports:

Local USB links up to 10 Gbps (USB 3.2 Gen 2)

USB 3.2 Gen 1 (5 Gbps) and USB 2.0 extension up to 100 m over Cat 6A cable (HDBaseT-USB3)

Bidirectional PoE++ power extension

Automatic host switching from either end of the extension

When powered over the extension, the USBExt3c provides up to 60 W of total USB-PD output across all USB ports. With local power, up to 90 W shared power is available.

Full software control of the USBExt3c is available using the interactive HubTool App or BrainStem® API via the upstream host connection, Ethernet, or dedicated USB-C Control Port. Acroname’s AnyPort™ technology allows either USB-C hub port (channels 0-1), on either end of the extension, to be dynamically configured as the upstream-facing host port.

Each USB-C port can be independently monitored and controlled, with the ability to:

Monitor, enable, or disable V_BUS on each port

Independently disconnect USB HS and SS for advanced USB testing

Source up to 60 W or sink up to 100 W USB-PD per port

Set current limits and USB charging modes

Automate enumeration delays and port resets

Automate USB port behaviors, set and read PD profiles

The fully bidirectional Power-Over-Ethernet (PoE) subsystem allows a pair of USBExt3c units to operate from a single power source, or to power other PoE-compliant devices (IEEE 802.3bt Class 8), with full software monitoring and control of the power link.

The USBExt3c is managed by the HubTool application, web interface, or BrainStem® API, via Ethernet, RS-232, or USB connections. To start using the USBExt3c, follow the Quick Start Guide. For an overview of the capabilities of the device, see Functionality. To see API entities specifically relevant to USBExt3c via API, see Entities.
