Devantech SRF05 Sonar Rangefinder

Price

$15.00

The SRF05 is a single transducer ultrasonic rangefinder with either a single pin for both trigger and echo, or separate trigger and echo pins.The SRF05 can be a drop-in replacement for the SRF04. The SRF05 returns a pulse proportional to distance that can measure from approx 1cm (0.4in) to 400cm (13ft).

SKU:

R271-SRF05

Manufactured by

Devantech

United Kingdom

Tabs

Overview

This Devantech SRF05 sonar range finder is a drop-in replacement to upgrade the SRF04, able to increase range (up to a maximum of 4 meters, or 13.12 feet) while simultaneously drawing less current. The one-pin, single-wire interface makes for easy compatibility with pin-constrained systems, but it’s also backward-compatible with the SRF04. This sensor is ideal for avoiding objects in robotic applications due to its tight beam width, fast reading rate, and low power usage. Because it’s a sonar sensor, there are no concerns around ambient light, unlike infrared-type sensors. Simple fixed-point calculations yield distance approximations that can be used for calculations, robotic mapping, or path planning. Popular uses also include autonomous ground vehicles (for collision avoidance) and in alarm systems (to detect movement).

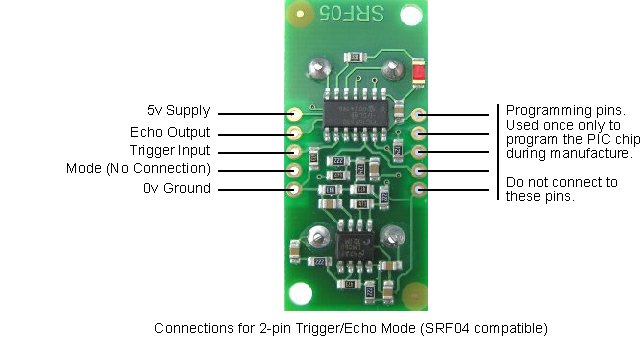

Mode 1 - SRF04 compatible - Separate Trigger and Echo

This mode uses separate trigger and echo pins, and is the simplest mode to use. All code examples for the SRF04 will work for the SRF05 in this mode. To use this mode, just leave the mode pin unconnected - the SRF05 has an internal pull up resistor on this pin.

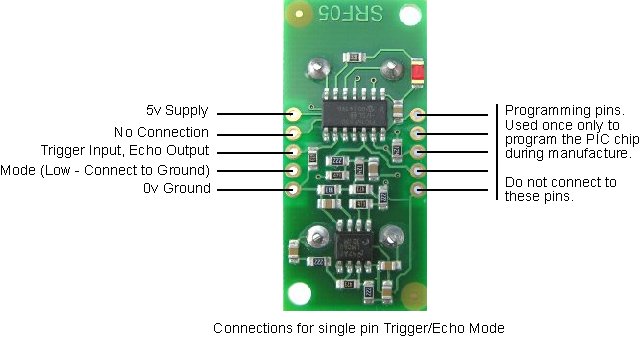

Mode 2 - Single pin for both Trigger and Echo

This mode uses a single pin for both Trigger and Echo signals, and is designed to save valuable pins on embedded controllers. To use this mode, connect the mode pin to the 0v Ground pin. The echo signal will appear on the same pin as the trigger signal. The SRF05 will not raise the echo line until 700uS after the end of the trigger signal. You have that long to turn the trigger pin around and make it an input and to have your pulse measuring code ready. The PULSIN command found on many popular controllers does this automatically.

Dimensions

Features

Sonar distance sensor
Single wire interface
Lower power
20Hz reading rate
Range of 3-400cm
Small form factor

Applications

Calculating the Distance

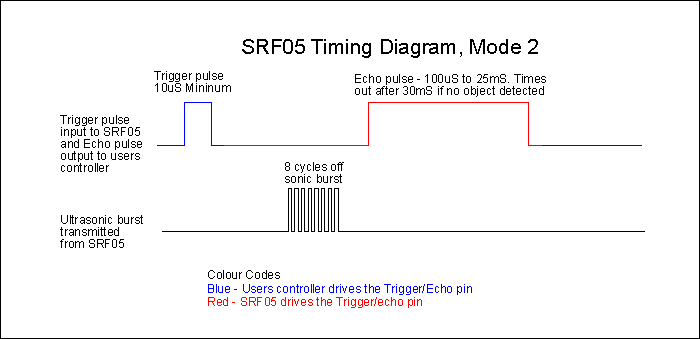

The SRF05 timing diagrams are shown below for each mode. The distance measurement is triggered with a 10µs pulse on the trigger input. The SRF05 will send out an 8 cycle burst of ultrasound at 40kHz and raise its echo line high (or trigger line in mode 2). It then waits for an echo, and lowers the echo line when it detects one. The echo line is therefore a pulse whose width is proportional to the distance to the object. By timing the echo pulse it is possible to calculate the range. If nothing is detected then the SRF05 will lower its echo line anyway after 30ms.

If the width of the pulse is measured in µs, then dividing by 58 give a distance approximation in cm; similarly dividing by 148 gives a distance approximation in inches. µs/58=cm or µs/148=inches.

The SRF05 can be triggered approximately once every 50ms, or 20 times each second. There should be atleast 50ms between each trigger, even if the SRF05 detects a close object and the echo pulse is shorter. This is to ensure the ultrasonic signal has faded away and will not cause a false echo on the next reading.

Changing beam pattern and beam width

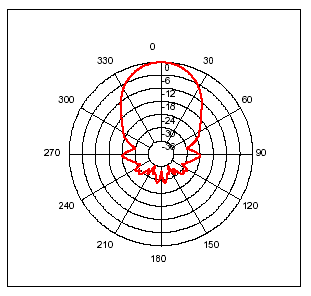

You can't! This is a question which crops up regularly, however there is no easy way to reduce or change the beam width that I'm aware of. The beam pattern of the SRF05 is conical with the width of the beam being a function of the surface area of the transducers and is fixed. The beam pattern of the transducers used on the SRF05, taken from the manufacturers data sheet, is shown below.

Downloads

Links

Technical Documentation

Specs

Characteristics
Voltage	5V
Current	4mA typically
Ultrasound Frequency	40kHz
Minimum Range	3cm
Maximum Range	4m
Input Trigger	10µs minimum, TTL level pulse
Echo Pulse	Positive TTL level signal, proportional to range
Size	43 x 20 x 17mm
Connection Type	Digital
