USBHub3+ is a 9-port USB 5Gbps hub with 2 host connections with a rugged steel housing, ESD protected design and nearly unlimited power output.
$845
If you have any technical questions, please email support@acroname.com
USBHub3+ is a 9-port, software controlled, programmable USB hub with per-port power control designed for the most demanding industrial and business environments. Ideal for conference rooms, testing or development environments where standard “always-on” behavior of a consumer-grade USB hub is not desirable. Expand to multiple hubs via expansion port. See our blog post about port density.
PAINLESS PRESENTATIONS
With Acroname’s auto-switching technology, when a user’s host device (Laptop) is plugged in to the USBHub3+ Up0 port, any USB peripherals connected to USBHub3+ will then automatically switch to that user’s host device.
COMPLETE CONTROL
The USBHub3+ is an intelligent USB hub with per-port control. Eight (8) down-stream programmable USB-A ports with individual on/off control that can measure individual port voltage, current and data speed. Perfect for device testing and software regression labs where device charge control is needed to mitigate battery-swell.
Cold Secure Backups
USBHub3+ gives you the power to create cold secure daily offline backups with just a small script. Preventing takedowns from ransomware.
INDUSTRIAL GRADE RELIABILITY
The USBHub3+ is built for the most demanding conditions when failure isn’t an option. With a rugged steel enclosure, ±15kV ESD protection, and DIN rail mountable. It is ready for the harshest of factory floors, device farms, laboratories, or CEO-laden conference rooms.
POWERFUL AND FULL OF POWER
While most USB hubs struggle to charge a phone, this programmable USB Hub can supply up to 5A on all ports with a maximum total power of up to 70W. This hub will not even break a sweat with eight 4k cameras connected.
The USBHub3+ is DIN Rail mountable using the C31-DINM-1.
This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. A list of specific chemicals can be found in the product documentation.
- Supports USB hosts and devices up to USB 5Gbps; backwards compatible with USB1, USB2
- Individually enable/disable any of 8 downstream ports
- Measure voltage and current on each downstream port
- Hi-Speed data, SuperSpeed data and power lines can be separately enabled for each downstream port
- Set programmable current limits for each downstream port (up to 4A)
- Dedicated Control Port for software control; independent of the selected upstream port
- Select between two (2) host connections
- All ports support USB link speeds up to 5Gbps
- Detect established link speed on each port: SuperSpeed (5Gbps) or Hi-Speed (480Mbps)
- Supply up to 5A per port; measure up to 4A
- Set enumeration delay for discovery of attached downstream devices
- Backward compatible with USB 2.0 and USB 1.x devices
- Boost USB 2.0 upstream and downstream signal levels
- DIN-rail mountable
- Alternate Euro-style terminal block power input connector
- Certified to +/-15kV ESD strikes (IEC61000-4-2 level 4)
- Overvoltage and reverse current protected Vbus outputs
- Monitor voltage and current on any/all ports
- Maintain selectable control of data, SS lines, power lines for any port
- Enable/Disable any downstream port
USES FOR 8-PORT INTELLIGENT USB HUB
- USB device manufacturing
- USB device validation and development
- Plug/unplug cycle testing
- Functional testing
- Battery charging
- USB device resets
- Power and data speed analyzing
- Controlling USB device enumeration sequence

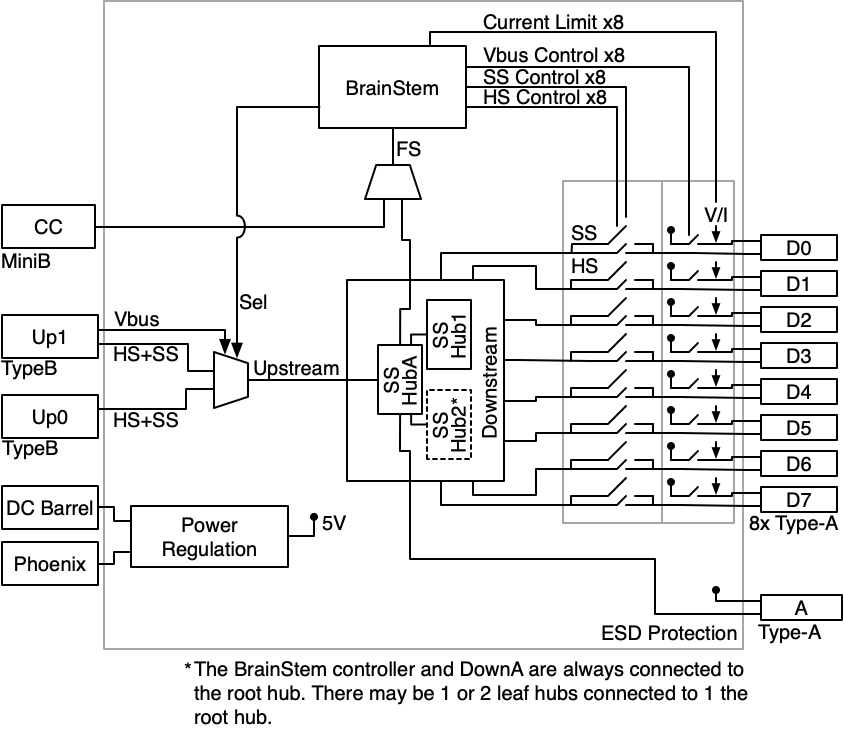

Block Diagram for our Programmable USB Hub
Mechanical

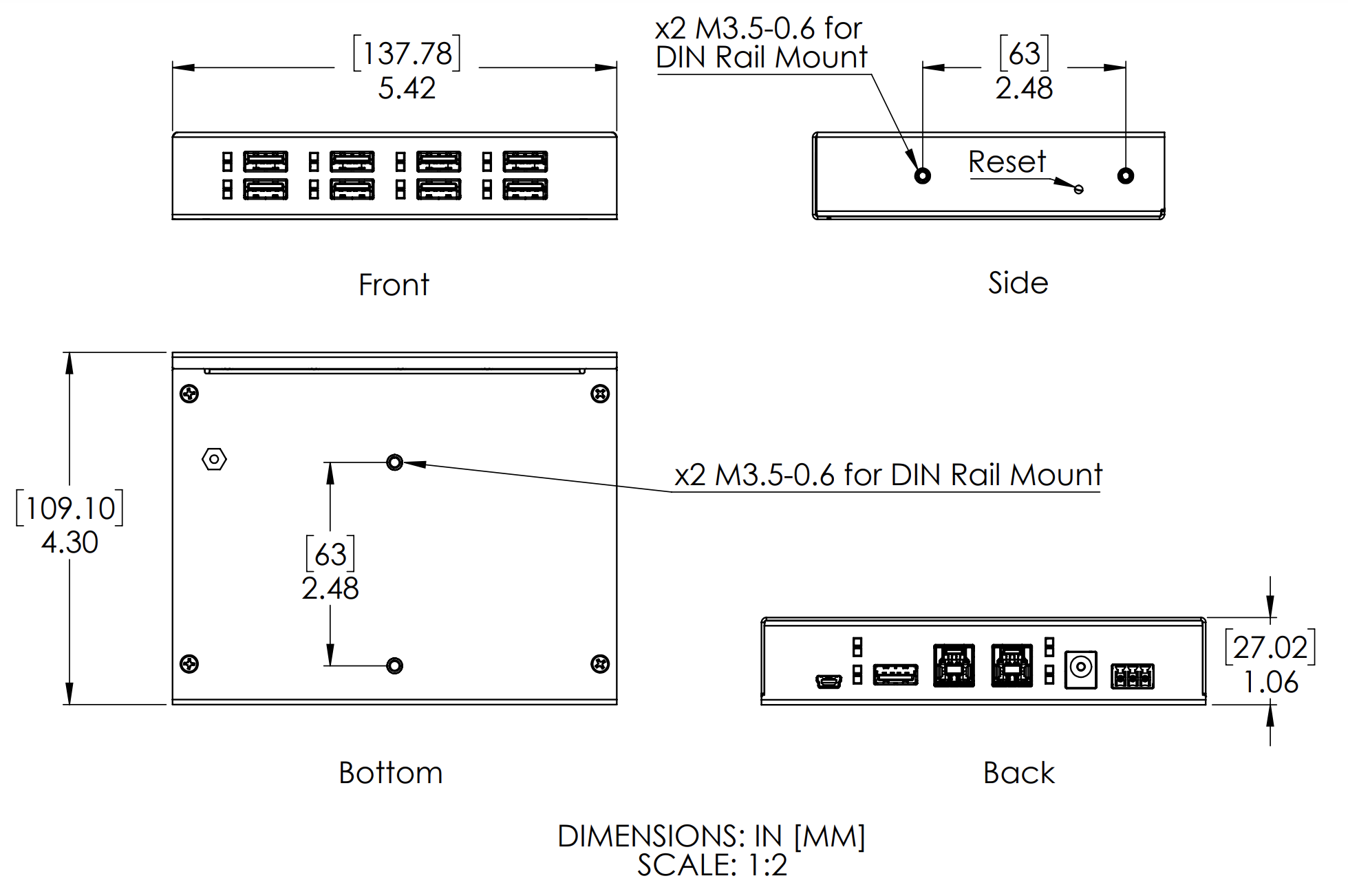

Dimensions are shown in inches [mm].
Software Control
This 8-port usb hub is built on Acroname’s BrainStem system, which provides simple high-level APIs, a real-time embedded runtime engine and modular expandability.
Software control of the features of the USBHub3+ is done with the BrainStem API via a BrainStem link. BrainStem links are done over USB and can be established via upstream port 0 (Up0), upstream port 1 (Up1), or the Control Port. After one or more of these ports is connected to a host machine, a user can connect to it via software on the host. An example graphical user interface application is available at https://acroname.com/software. Functionality details unique to the USBHub3+ are in the online API documentation. For more information on getting started with software control of the USBHub3+, see the online reference documentation at https://acroname.com/reference/.
BrainStem Control Port
By integrating Acroname's BrainStem technology, the USBHub3+ can be controlled with a simple and powerful programming API in C++ and Python. Acroname also provides HubTool as an example application which can be used to quickly setup or control the hub. The BrainStem APIs and HubTool is available on all modern operating systems (macOS, Linux, and Windows 11 - Windows 7 (32bit and 64bit)). And of course, the BrainStem platform provides an embedded virtual machine API. This embedded RTOS allows for completely automatic control of all features of the 8-port usb hub without needing a host PC.
The latest BrainStem development API is always available in the Download Center. The latest firwmare can be applied using the Updater utility. Check out the BrainStem Firmware Management reference entry or video for instructions on how to update your device.
HubTool

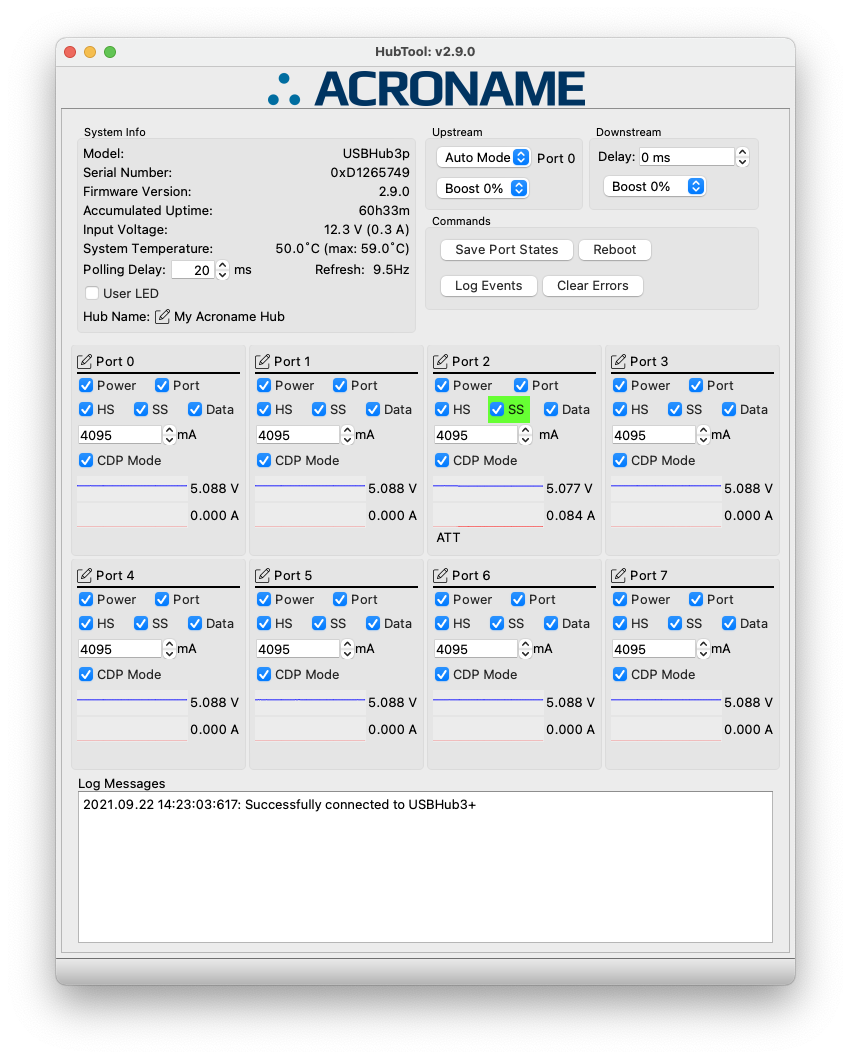

HubTool is an example application utilizing the Qt GUI framework. Source code for HubTool is available in theDownload Center, which can serve as a quick start to writing your own GUI application to meet your needs. It also serves as a good entry tool for understanding the functionality of the USBHub3+, or just watching the battery charge curves of your various devices.
Let Acroname help you take charge of USB in ways you had not previously thought possible.
Typical Performance Characteristics
Specifications are valid at 25°C unless otherwise noted. Indoor application use only. Sample rates are typically limited by the USB throughput of the host operating system except where bulk capture is supported.
| Parameter | Conditions/Notes | Min | Typ. | Max | Units |
|---|---|---|---|---|---|
| Input Power, Wsupply, no downstream devices attached | - | 2.2 | - | W | |
| Vsupply Under Voltage Lockout (UVLO) | 7.7 | 8.0 | 8.2 | V | |
| Vsupply Over Voltage Lockout (OVLO) | 26.0 | 26.8 | 27.8 | V | |
| Wide Input Range System Efficiency | At 12.0V input, nominal 8A load3 | 84 | - | 92 | % |
| USB Downstream Output Voltage, Vbus | No load on downstream USB ports | 4.947 | -5.10 | 5.25 | V |
| Vbus Measurement Resolution | - | 8.0 | - | mV | |
| Vbus Measurement Accuracy | -2.0 | - | 2.0 | % | |
| Vbus Short-circuit Trip Current, Ilimit | 4.8 | 5.0 | 5.4 | A | |
| Vbus Short-circuit Trip Time, tlimit | - | 0.7 | - | µS | |
| Vbus Short-circuit Average Current, Ishort | After trip | 0.3 | 0.5 | 52.0 | A |
| Vbus Current Measurement Resolution | - | 1.0 | - | mA | |
| Vbus Current Measurement Accuracy | Vbus current < 4.00A | -1.0 | - | 1.0 | % |
| Vbus Current Measurement Range | 0 | - | 4095 | mA | |
| Vbus Current Limit Trip Point Range | Software programmable | 0 | - | 4095 | mA |
| Vbus Current Limit Trip Point Resolution | - | 1.0 | - | mA | |
| USB3 SuperSpeed Data Throughput | 5.0 | Gbps | |||
| USB2 HighSpeed Data Throughput | 480 | Mbps | |||
| MTBF (hub assembly only) | 92.8 | Years | |||
| FIT (60% confidence; hub assembly) | 1230 | failures per one billion hours | |||
| MTBF (hub plus included power adapter) | 5.3 | Years | |||
| FIT (60% confidence; hub plus power adapter) | 21229 | failures per one billion hours |
- 1 - USBHub3+ Programmable 5Gbps USB Hub
- 1 - 3ft USB3 A-to-B cable (R408-USB3-A-TO-B-CBL)
- 1 - 6ft USB2 A-to-Mini-B cable (R318-USB-A-TO-MINI-B)
- 1 - AC/DC 120-240VAC in, 12V/5A out power supply (R469-ACDC-PS-3)
- 1 - Three position terminal block plug
- 1 - Quick start guide
- 1 - DIN rail installation guide
