System TabΒΆ

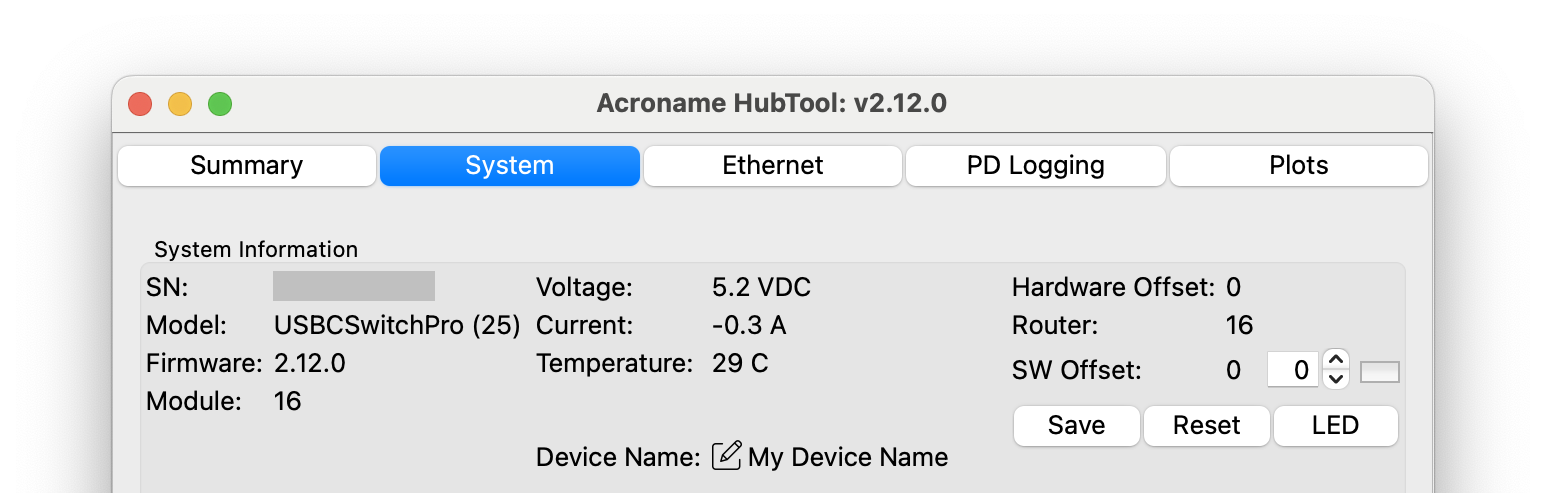

The System Information tab contains information and settings for the switch.
Heading
Meaning
SN
Switch serial number
Model
Switch model name and number, e.g. USBCSwitchPro (25)
Firmware
Currently installed firmware version
Module
Address of the module on the Brainstem network
Voltage
Voltage at the input power source port
Current
Input current at the Control port
Temperature
System temperature
Hardware offset
Increments Brainstem module address by a hardware setting - fixed to 0 in USB-C-Switch Pro
Router
Address of the routing Brainstem module
Software offset
Increment the module address by the selected amount. Click the button to send to the device, Save and Reset to apply
Save
Store select changed settings
Reset
Soft reset of the switch
LED
Toggles blue User LED (person icon next to the control port), used for debugging and to identify the switch
