PoE Tab

../../../_images/hubtool_ext3c_poe.png

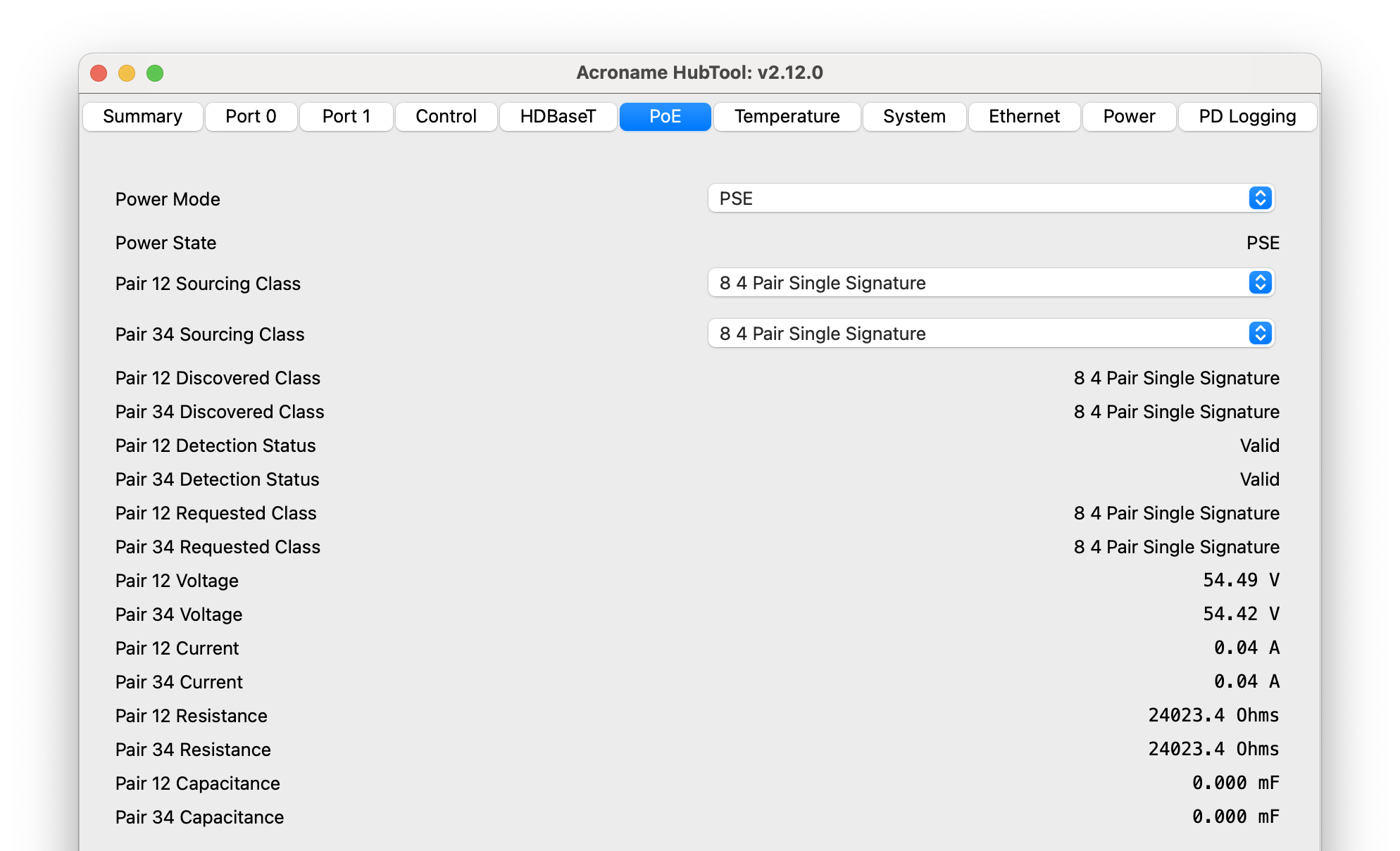

The PoE tab shows the status of the Power over Ethernet system on the extension link. The PoE controller automatically manages power distribution between endpoints based on available sources and connected loads. For testing, diagnostics, and advanced applications, manual control and monitoring are available.

Power Mode / State

  • Power Mode — sets the device role: PSE (source), PD (sink), Auto (default), or Off

  • Power State — reports the current operating mode (PSE, PD, or Off)

Per-Pair Values (Pairs 1–2 and 3–4)

  • Sourcing Class — sets the PoE source class signature

  • Discovered Class — shows the negotiated class after detection

  • Detection Status — indicates connection condition (valid, short, open, Hi-Z, Lo-Z, switch failure, or unknown)

  • Requested Class — class requested from the PD to the PSE

  • Voltage (V)

  • Current (A)

  • Resistance (mΩ)

  • Capacitance (μF)
