Summary TabΒΆ

The summary tab displays simplified interface panels for ports 0, 1, Control, and the HDBaseT-USB3 interface.

../../../_images/hubtool_ext3c_summary_top.png

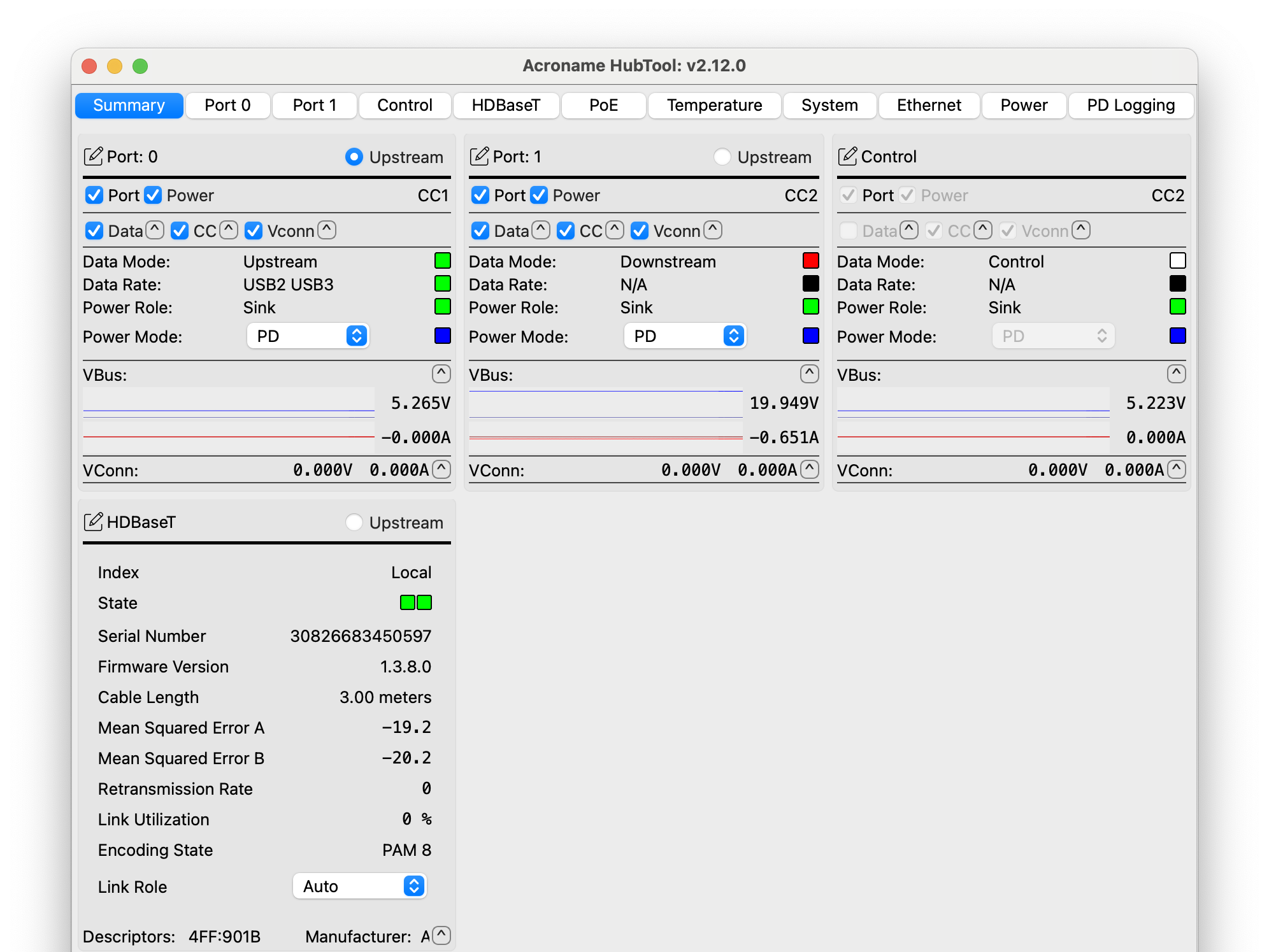

Summary tab view

Each port interface panel shows a consolidated view of the corresponding port and HDBaseT tabs.

../../../_images/hubtool_ext3c_one_port.png

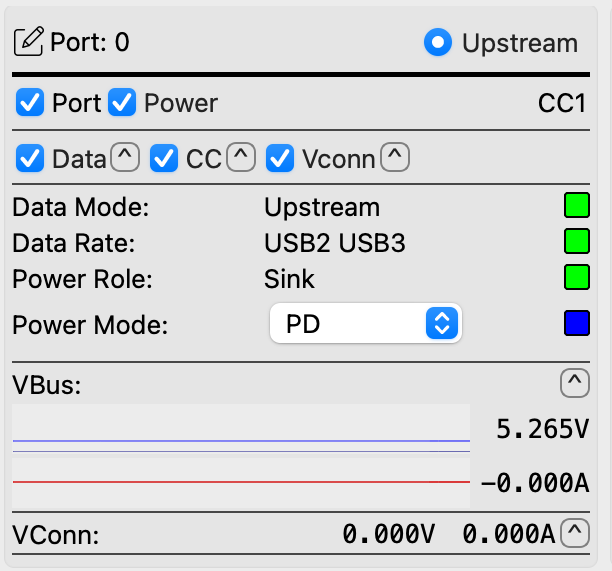

Port panel in summary view
